Let's take a look at the Microshare™ data structure.
SUMMARY :
1. Microshare unpacked format
Data is sent as a payload from the IoT devices to the Microshare unpackers as raw, compressed data for efficiency. The data is then transformed and enriched by the Microshare unpacker into comprehensible information using one of our canonical json formats. This process ensures that the data can be analyzed consistently regardless of device vendor or the network used to transmit. The final format is referred to as unpacked data.
This guide will provide details on the processes involved in collecting the raw data and decompressing it into unpacked data. Please note that the information supplied may differ slightly to that required for your network server, as details differ from server to server.
Additionally, this guide will discuss tags. Tags are labels or descriptions attached to your device clusters for ease of identification.
2. Microshare Standards Data
Example :
{
"meta": {
"currentCount": 337,
"currentPage": 1,
"perPage": 1000,
"source": "db",
"totalCount": 1000,
"totalPages": 1
},
"objs": [
{
"_id": "5ed1123046e0fb0028b70???",
"checksum": "09BE84FF7E4E9CF6E4777C9900EDCDE0C0397956F251C8BCF08A5226A387FFA1L1521",
"createDate": "2020-06-17T09:48:08.980Z",
"creatorId": "yourname@microshare.io",
"data": {
"co2": 65535,
"co2_label": "65535ppm",
"co2_unit": "ppm",
"device": {
"battery": {
"power": 80,
"power_label": "0.8%",
"voltage": 3.6,
"voltage_label": "3.6V"
},
"id": "58-A0-CB-00-00-40-??-??"
},
"humidity": 64,
"humidity_label": "64%",
"humidity_unit": "%",
"ipso": {
"3302": {
"5500": false,
"5751": "PIR"
},
"3303": {
"5700": 19,
"5701": "Cel"
},
"3304": {
"5700": 64,
"5701": "%"
},
"3316": {
"5700": 3.6,
"5701": "V",
"5750": "device battery state: voltage"
},
"3320": {
"5700": 0.8,
"5701": "%",
"5750": "device battery state: percentage charged"
},
"3325-1": {
"5700": 65535,
"5701": "ppm",
"5750": "concentration of CO2 in ppm"
},
"3325-2": {
"5700": 65535,
"5701": "ppb",
"5750": "concentration of VOCs in ppb"
}
},
"meta": {
"device": [
"London Office",
"1st Floor",
"Office 3"
],
"global": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"your environment"
],
"iot": {
"device_id": "58-A0-CB-00-00-40-??-??",
"fcnt_dwn": 749,
"fcnt_up": 4510,
"fport": 103,
"iso_time": "2020-06-17T09:48:08.494Z",
"ns_version": "v3.0",
"payload": "08cb3340ffffffff",
"payload_fmt": 1,
"time": "2020-06-17T09:48:08.494Z",
"type": "uplink"
},
"source": []
},
"origin": {
"adr": true,
"classB": false,
"confirmed": false,
"delayed": false,
"encodingType": "HEXA",
"encrypted": false,
"endDevice": {
"cluster": {
"id": 66
},
"devAddr": "E04123???",
"devEui": "58A0CB000040????"
},
"fCntDown": 749,
"fCntUp": 4510,
"fPort": 103,
"id": "5ee9e6d860baf40001b9e???",
"payload": "08cb3340ffffffff",
"recvTime": 1592387288494
},
"status": 8,
"status_label": "false",
"temp": 19,
"temp_label": "19 °C",
"temp_unit": "°C",
"unpacker": {
"class": "io.tracknet.healthy.TBHV100.Decoder",
"library": "lorawan_device_unpack",
"version": "0.5.5"
},
"voc": 65535,
"voc_label": "65535ppb",
"voc_unit": "ppb"
},
"desc": "",
"id": "5ed1123046e0fb0028b70???",
"name": "",
"origin": {
"checksum": "09BE84FF7E4E9CF6E4777C9900EDCDE0C0397956F251C8BCF08A5226A387FFA1L1521",
"createDate": "2020-06-17T09:48:08.980Z",
"creatorId": "yourname@microshare.io",
"desc": "Record of Type io.microshare.yourenvironment.unpacked",
"id": "5ed1123046e0fb0028b70???",
"name": "io.microshare.yourenvironment.unpacked",
"remoteAddress": "your remote address",
"tokendata": {
"id": "006f6b5f-171e-46cf-8f70-c4fa15b6????",
"ip": "your ip address"
}
},
"owner": {
"appid": "B8E2F5B2-969D-4EFF-BD45-B8CFF2F2????",
"meta": {},
"org": "io.microshare",
"owners": [],
"user": "yourname@microshare.io"
},
"recType": "io.microshare.yourenvironment.unpacked",
"tags": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"your environment",
"London Office",
"1st Floor",
"Office 3"
],
"tstamp": 1592387288980,
"updateDate": "2020-06-17T09:48:08.980Z",
"updaterId": "yourname@microshare.io"
},
.......
A. General Structure
The majority of the information within the packet of data details the settings of the device cluster. The remaining pieces of information contain the data collected by the devices.

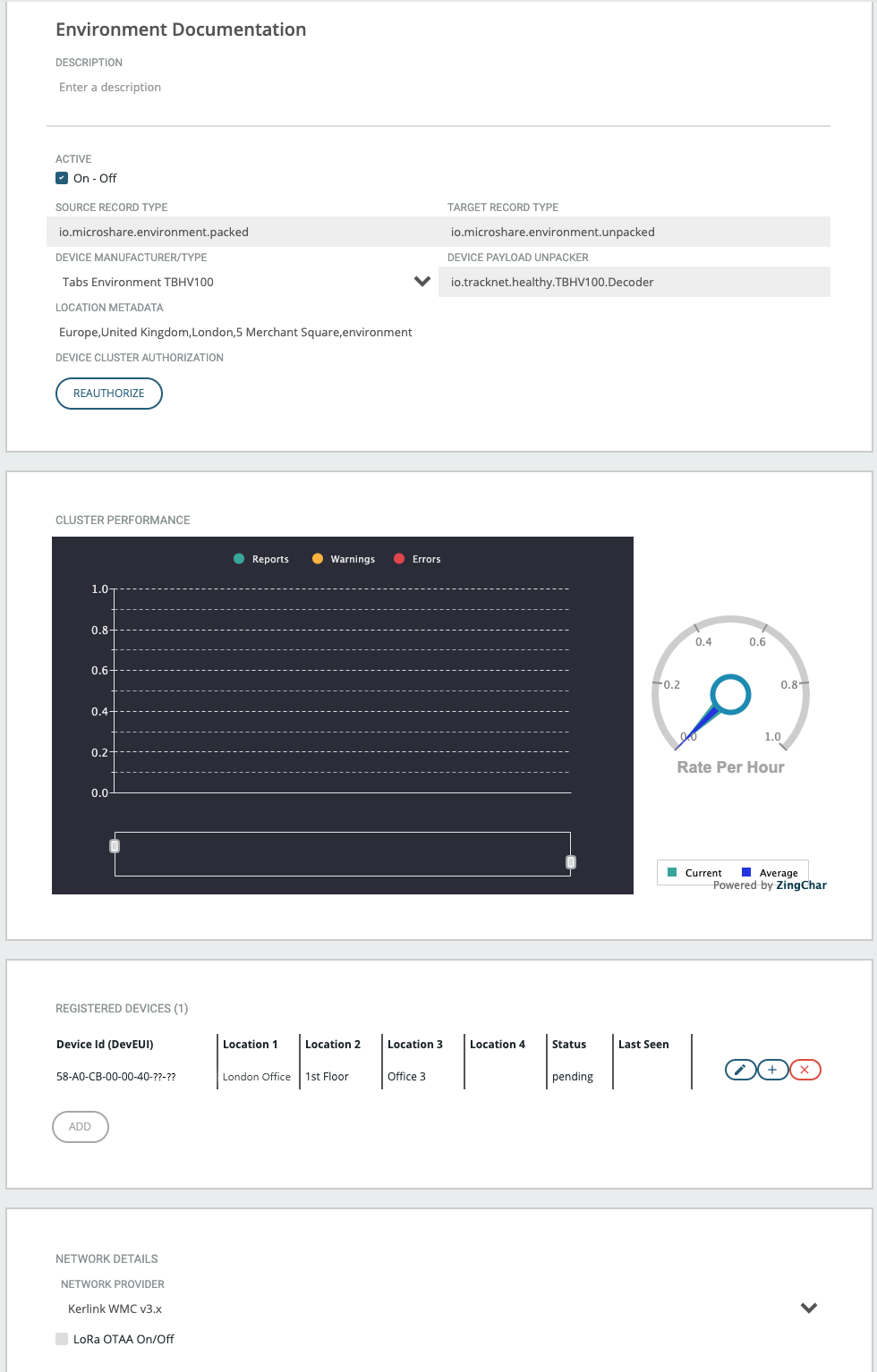

This is how the device cluster is set up:
B. {Data}
Now let’s talk about the {Data}, which contains the device information.
The various components include:
Above is the device data within {Data}.
All these values are explained with their units in the following table:
> Standards Data Table
{Data} contains information about the device that provided the data payload. This usually includes the device id, battery type, battery type, etc. The code supplied will look like:
"device": {
"battery": {
"power": 80,
"power_label": "0.8%",
"voltage": 3.6,
"voltage_label": "3.6V"
},
"id": "58-A0-CB-00-00-40-??-??"
},
C. Ipso
Micoshare® upholds the IPSO values for cohesion with our international partners. You can learn more about the IPSO IoT standards on this web page:
http://www.openmobilealliance.org/wp/OMNA/LwM2M/LwM2MRegistry.html
D. Meta/IoT
"meta": {
"device": [
"London",
"1st Floor",
"Office 3"
],
"global": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"your environment"
],
"iot": {
"device_id": "58-A0-CB-00-00-40-??-??",
"fcnt_dwn": 749,
"fcnt_up": 4510,
"fport": 103,
"iso_time": "2020-06-17T09:48:08.494Z",
"ns_version": "v3.0",
"payload": "08cb3340ffffffff",
"payload_fmt": 1,
"time": "2020-06-17T09:48:08.494Z",
"type": "uplink"
},
"source": []
},
The meta will provide:
-
device - the device’s specific location.
-
global - location of the device’s device cluster.
-
device_id - the device’s unique identification number.
-
type - whether the information is an uplink (data is sent from the device up to the network server) or a downlink (data is sent from the network server down to the device). This will almost always be an uplink.
-
fcnt_up - the up count; the number of uplink interactions between the device and the network server.
-
fcnt_down - the down count.
-
fport - the port where the device’s packet is sent to the network server.
-
iso_time or time- the time at which the network received the device’s data.
-
ns_version - the version of the network server.
-
payload - the data that the device sends out to the network server.
E. Origin
"origin": {
"checksum": "09BE84FF7E4E9CF6E4777C9900EDCDE0C0397956F251C8BCF08A5226A387FFA1L1521",
"createDate": "2020-06-17T09:48:08.980Z",
"creatorId": "yourname@microshare.io",
"desc": "Record of Type io.microshare.yourenvironment.unpacked",
"id": "5ed1123046e0fb0028b70???",
"name": "io.microshare.yourenvironment.unpacked",
"remoteAddress": "your ip address",
"tokendata": {
"id": "006f6b5f-171e-46cf-8f70-c4fa15b6????",
"ip": "your ip address"
}
},
A thorough explanation of the origins can be found in the Overview page.
Some information may differ if you unpack the data in an account that is not the one hosting the packed data. This is unadvised and be cautious to avoid this mistake.
F. Unpacker
"unpacker": {
"class": "io.tracknet.healthy.TBHV100.Decoder",
"library": "lorawan_device_unpack",
"version": "0.5.5"
},
The last block of data in {Data} describes the device cluster that is permitted to unpack the payload. This is important as Microshare has a large number of unpackers and sending the payload to the wrong unpacker may result in lost information. Below is the library of all the various Microshare unpackers and where it is located. The descriptors ‘class’ and ‘version’ helps navigate this library.
G. recTypes
| Solutions | packed RecType | unpacked RecType |
|---|---|---|
| Activity Level Indicator | io.microshare.motion.packed | io.microshare.motion.unpacked |
| Brightness Monitoring | io.microshare.light.packed | io.microshare.light.unpacked |
| Decibel Monitoring | io.microshare.sound.packed | io.microshare.sound.unpacked |
| Desk Occupancy Monitoring | io.microshare.occupancy.packed | io.microshare.occupancy.unpacked |
| Feedback Stations | io.microshare.feedback.packed | io.microshare.feedback.unpacked(.event.meta) |
| Fridge temperature Monitoring | io.microshare.environment.packed | io.microshare.environment.unpacked |
| Indoor Air Quality Monitoring | io.microshare.environment.packed | io.microshare.environment.unpacked |
| Leak Detection | io.microshare.leak.packed | io.microshare.leak.unpacked |
| Open Shut Indicator | io.microshare.openclose.packed | io.microshare.openclose.unpacked |
| Room Occupancy Monitoring | io.microshare.occupancy.packed | io.microshare.occupancy.unpacked |
| Smart Activity Timestamping | io.microshare.feedback.packed | io.microshare.feedback.unpacked(.event.meta) |
| Smart Waste Management | io.microshare.bin.packed | io.microshare.bin.unpacked |
| Touchfree Feedback | io.microshare.feedback.unpacked.event.meta | |
| Electricity Usage Monitoring | io.microshare.current.packed | io.microshare.current.unpacked |
| People Counting | io.microshare.peoplecounting.packed | io.microshare.peoplecounting.unpacked |
3. Standards Data Table
| Name | Unit | Meaning |
|---|---|---|
| temperature | °C | Temperature of area in degrees celcius |
| humidity | % | Percentage of water vapor mass in dry air of area |
| pressure | hpa | Pressure of the area |
| illuminance | lx | Amount of light in the area |
| voc | ppb | How much Volatile Organic Compound in ppb is in the area |
| co2 | ppm | Carbon Dioxide Concentration in ppm in area |
| iaq | n/a | Indoor Air Quality Index (0-500) |
| loudness | dba | Level of Volume of area |
| haziness | % | level of impared vision from environment |
| smokiness | %dbm | level of smoke in the environment |
| gas | n/a | level of gas in the environment |
| voltage | V | battery voltage |
| current | A | electrical current |
| multiplier | n/a | electrical current value multiplier |
| presence | n/a | true= presebce detected |
| motions_since_reset | n/a | motion since reset |
| motions_since_transmit | n/a | motion since last transmit |
| acceleration | m/s2 | Acceleration of motion detected |
| velocity | m/s | velocity of motion detected |
| x | n/a | position on the x- plane |
| y | n/a | position on the y- plane |
| z | n/a | position on the z- plane |
| leak | n/a | true= leak detected |
| lighter | n/a | true= lighter |
| darker | n/a | true= darker |
| dismantle | n/a | true= dismantled |
| charge | % | Battery Charge |
| period | s | Time in between measurements |
| rssi | dbm | Recieved Signal Strength Indication |
| snr | db | Signal to Noise Ratio, quality of signal |
| reports_since_reset | n/a | number of reports since last reset |
| closed | n/a | true= closed |
| fill | % | Fill Level frame/Uplink frame |
| distance | cm | distance from monitor to device |
| gps | ° | GPS Coordinates |
| lat | ° | Latitude |
| lon | ° | Longitude |
| push | n/a | true= button pushed |
| swipe | n/a | true= swiped |
| pushes_since_reset | n/a | button pushes since reset |
| alarm | n/a | true = there is an alarm |
| time | s | seconds since 1/1/1970 |
| iso_time | s | ISO 8601 datetime |
| seconds_since_change | s | seconds since last transmit |
| msg_type | n/a | Type of message recieved |
| fault | n/a | number of faults detected in payload |
4. Example
A. Motion Data
{
"meta": {
"currentCount": 355,
"currentPage": 1,
"perPage": 1000,
"source": "db",
"totalCount": 1000,
"totalPages": 1
},
"objs": [
{
"_id": "5eea1d8d46e0fb0028a0b???",
"checksum": "8BAA297C7FC219B1EFFA2846C5B9C9EZE34CAC3671A7D3AF90C89CEC5DAABC2L1425",
"createDate": "2020-06-17T13:41:33.425Z",
"creatorId": "yourname@microshare.io",
"data": {
"device": {
"battery": {
"power": 0.8,
"power_label": "80%",
"voltage": 3.6,
"voltage_label": "3.6V"
},
"count": 2997,
"id": "58-A0-CB-00-00-22-??-??"
},
"ipso": {
"3000": {
"5534": 2997,
"5750": "count of reports since power-on"
},
"3302": {
"5500": true,
"5750": "TRUE = presence detected",
"5751": "PIR"
},
"3303": {
"5700": 25,
"5701": "Cel"
},
"3316": {
"5700": 3.6,
"5701": "V",
"5750": "device battery state: voltage"
},
"3320": {
"5700": 0.8,
"5701": "%",
"5750": "device battery state: percentage charged"
},
"3333": {
"5707": 0,
"5750": "seconds elapsed since last state change"
}
},
"meta": {
"device": [
"London Office",
"Ground Floor",
"Office 2"
],
"global": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"door"
],
"iot": {
"device_id": "58-A0-CB-00-00-22-??-??",
"fcnt_dwn": 761,
"fcnt_up": 5551,
"fport": 102,
"iso_time": "2020-06-17T13:41:32.967Z",
"ns_version": "v3.0",
"payload": "01cb390000b50b00",
"payload_fmt": 1,
"time": "2020-06-17T13:41:32.967Z",
"type": "uplink"
},
"source": []
},
"origin": {
"adr": true,
"classB": false,
"confirmed": false,
"delayed": false,
"encodingType": "HEXA",
"encrypted": false,
"endDevice": {
"cluster": {
"id": 84
},
"devAddr": "00000???",
"devEui": "58A0CB000022????"
},
"fCntDown": 761,
"fCntUp": 5551,
"fPort": 102,
"id": "5eea1d8d60baf40001ba2???",
"payload": "01cb390000b50b00",
"recvTime": 1592401292967
},
"payload": "01cb390000b50b00",
"status": 1,
"status_label": "occupied",
"temp": 25,
"temp_label": "25°C",
"temp_unit": "°C",
"time": 0,
"time_label": "0 minutes",
"time_unit": "minutes",
"unpacker": {
"class": "io.tracknet.motion.TMBS100.Decoder",
"library": "lorawan_device_unpack",
"version": "0.5.5"
}
},
"desc": "",
"id": "5eea1d8d46e0fb0028a0b???",
"name": "",
"origin": {
"checksum": "8BAA297C7FC219B1EFFA2846C5B9C9C2BF56CAC3671A7D3AF90C89CEC5DAABC2L1425",
"createDate": "2020-06-17T13:41:33.425Z",
"creatorId": "yourname@microshare.io",
"desc": "Record of Type io.microshare.motion.unpacked",
"id": "5eea1d8d46e0fb0028a0b???",
"name": "io.microshare.motion.unpacked",
"remoteAddress": "your remote address",
"tokendata": {
"id": "006f6b5f-171e-46cf-8f70-c4fa15b6????",
"ip": "your ip address"
}
},
"owner": {
"appid": "B8E2F5B2-969D-4EFF-BD45-B8CFF2F2????",
"meta": {},
"org": "io.microshare",
"owners": [],
"user": "yourname@microshare.io"
},
"recType": "io.microshare.motion.unpacked",
"tags": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"door",
"London Office",
"Ground Floor",
"Office 2"
],
"tstamp": 1592401293425,
"updateDate": "2020-06-17T13:41:33.425Z",
"updaterId": "yourname@microshare.io"
},
The count represents the number of movements triggered, the range is 0 - 16,777,215. It resets at any power-cycle or battery replacement. The time represents the number of minutes since the last movement have been triggered. The range is 0 – 65,535, it will be reset at the same time as the count.
B. Temperature Data
{
"meta": {
"currentCount": 337,
"currentPage": 1,
"perPage": 1000,
"source": "db",
"totalCount": 1000,
"totalPages": 1
},
"objs": [
{
"_id": "5ed1123046e0fb0028b70???",
"checksum": "09BE84FF7E4E9CF6E4777C9900EDCDE0C0397956F251C8BCF08A5226A387FFA1L1521",
"createDate": "2020-06-17T09:48:08.980Z",
"creatorId": "yourname@microshare.io",
"data": {
"co2": 65535,
"co2_label": "65535ppm",
"co2_unit": "ppm",
"device": {
"battery": {
"power": 80,
"power_label": "0.8%",
"voltage": 3.6,
"voltage_label": "3.6V"
},
"id": "58-A0-CB-00-00-40-??-??"
},
"humidity": 64,
"humidity_label": "64%",
"humidity_unit": "%",
"ipso": {
"3302": {
"5500": false,
"5751": "PIR"
},
"3303": {
"5700": 19,
"5701": "Cel"
},
"3304": {
"5700": 64,
"5701": "%"
},
"3316": {
"5700": 3.6,
"5701": "V",
"5750": "device battery state: voltage"
},
"3320": {
"5700": 0.8,
"5701": "%",
"5750": "device battery state: percentage charged"
},
"3325-1": {
"5700": 65535,
"5701": "ppm",
"5750": "concentration of CO2 in ppm"
},
"3325-2": {
"5700": 65535,
"5701": "ppb",
"5750": "concentration of VOCs in ppb"
}
},
"meta": {
"device": [
"London",
"1st Floor",
"Office 3"
],
"global": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"your environment"
],
"iot": {
"device_id": "58-A0-CB-00-00-40-??-??",
"fcnt_dwn": 749,
"fcnt_up": 4510,
"fport": 103,
"iso_time": "2020-06-17T09:48:08.494Z",
"ns_version": "v3.0",
"payload": "08cb3340ffffffff",
"payload_fmt": 1,
"time": "2020-06-17T09:48:08.494Z",
"type": "uplink"
},
"source": []
},
"origin": {
"adr": true,
"classB": false,
"confirmed": false,
"delayed": false,
"encodingType": "HEXA",
"encrypted": false,
"endDevice": {
"cluster": {
"id": 66
},
"devAddr": "E04123???",
"devEui": "58A0CB000040????"
},
"fCntDown": 749,
"fCntUp": 4510,
"fPort": 103,
"id": "5ee9e6d860baf40001b9e???",
"payload": "08cb3340ffffffff",
"recvTime": 1592387288494
},
"status": 8,
"status_label": "false",
"temp": 19,
"temp_label": "19 °C",
"temp_unit": "°C",
"unpacker": {
"class": "io.tracknet.healthy.TBHV100.Decoder",
"library": "lorawan_device_unpack",
"version": "0.5.5"
},
"voc": 65535,
"voc_label": "65535ppb",
"voc_unit": "ppb"
},
"desc": "",
"id": "5ed1123046e0fb0028b70???",
"name": "",
"origin": {
"checksum": "09BE84FF7E4E9CF6E4777C9900EDCDE0C0397956F251C8BCF08A5226A387FFA1L1521",
"createDate": "2020-06-17T09:48:08.980Z",
"creatorId": "yourname@microshare.io",
"desc": "Record of Type io.microshare.yourenvironment.unpacked",
"id": "5ed1123046e0fb0028b70???",
"name": "io.microshare.yourenvironment.unpacked",
"remoteAddress": "your remote address",
"tokendata": {
"id": "006f6b5f-171e-46cf-8f70-c4fa15b6????",
"ip": "your ip address"
}
},
"owner": {
"appid": "B8E2F5B2-969D-4EFF-BD45-B8CFF2F2????",
"meta": {},
"org": "io.microshare",
"owners": [],
"user": "yourname@microshare.io"
},
"recType": "io.microshare.your environment.unpacked",
"tags": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"your environment",
"London",
"1st Floor",
"Office 3"
],
"tstamp": 1592387288980,
"updateDate": "2020-06-17T09:48:08.980Z",
"updaterId": "yourname@microshare.io"
},
.......
C. Feedback Data
{
"meta": {
"currentCount": 261,
"currentPage": 1,
"perPage": 1000,
"source": "db",
"totalCount": 1000,
"totalPages": 1
},
"objs": [
{
"_id": "5eea1e1346e0fb0022355???",
"checksum": "C6E1072EB86D537C2E7E9B8D3A3244BA4FC5BEDD44718F32532ZZER5E6A56E28F9L1818",
"createDate": "2020-06-17T13:43:47.365Z",
"creatorId": "yourname@microshare.io",
"data": {
"count_1": 75,
"count_2": 610,
"count_3": 42,
"count_4": 246,
"count_5": 882,
"device": {
"id": "70-B3-D5-32-60-00-??-??"
},
"ipso": {
"10241": {
"5905": "skiply.eu",
"5906": "Smilio Action",
"5908": "1.2.0.1"
},
"3302": {
"5500": false,
"5751": "Hall Effect activated"
},
"3347": [
{
"5501": 75,
"5502": false,
"5527": "Button #1, Upper Left, count of reports since power-on/reset",
"5750": "Push Button",
"5853": "Button #1, Upper Left"
},
{
"5501": 610,
"5502": false,
"5527": "Button #2, Upper Right, count of reports since power-on/reset",
"5750": "Push Button",
"5853": "Button #2, Upper Right"
},
{
"5501": 42,
"5502": false,
"5527": "Button #3, Lower Left, count of reports since power-on/reset",
"5750": "Push Button",
"5853": "Button #3, Lower Left"
},
{
"5501": 246,
"5502": false,
"5527": "Button #4, Lower Right, count of reports since power-on/reset",
"5750": "Push Button",
"5853": "Button #4, Lower Right"
},
{
"5501": 882,
"5502": false,
"5527": "Button #5, Middle, count of reports since power-on/reset",
"5750": "Push Button",
"5853": "Button #5, Middle"
}
]
},
"meta": {
"device": [
"London Office",
"1st Floor",
"Kitchen"
],
"global": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"5b_feedback"
],
"iot": {
"device_id": "70-B3-D5-32-60-00-??-??",
"fcnt_dwn": 28,
"fcnt_up": 1778,
"fport": 2,
"iso_time": "2020-06-17T13:43:46.924Z",
"ns_version": "v3.0",
"payload": "02004b02620372002a00f6",
"payload_fmt": 1,
"time": "2020-06-17T13:43:46.924Z",
"type": "uplink"
},
"source": []
},
"origin": {
"adr": true,
"classB": false,
"confirmed": false,
"delayed": false,
"encodingType": "HEXA",
"encrypted": false,
"endDevice": {
"cluster": {
"id": 2
},
"devAddr": "E0423???",
"devEui": "70B3D5326000C???"
},
"fCntDown": 28,
"fCntUp": 1778,
"fPort": 2,
"id": "5eea1e1360baf40001ba2???",
"payload": "02004b02620372002a00f6",
"recvTime": 1592401426924
},
"payload": "02004b02620372002a00f6",
"trigger": false,
"unpacker": {
"class": "eu.skiply.button.SmilioAction.Decoder",
"library": "lorawan_device_unpack",
"version": "0.5.5"
}
},
"desc": "",
"id": "5eea1e1346e0fb0028915???",
"name": "",
"origin": {
"checksum": "C6E1072EB86D537C2E7E9B8D3ACREZERT3BEDD44718F9898C234352A56E28F9L1818",
"createDate": "2020-06-17T13:43:47.365Z",
"creatorId": "yourname@microshare.io",
"desc": "Record of Type io.microshare.feedback.unpacked",
"id": "5eea1e1346e0fb0028915???",
"name": "io.microshare.feedback.unpacked",
"remoteAddress": "your remote address",
"tokendata": {
"id": "006f6b5f-171e-46cf-8f70-c4fa15b6????",
"ip": "your ip address"
}
},
"owner": {
"appid": "B8E2F5B2-969D-4EFF-BD45-B8CFF2F2????",
"meta": {},
"org": "io.microshare",
"owners": [],
"user": "yourname@microshare.io"
},
"recType": "io.microshare.feedback.unpacked",
"tags": [
"Europe",
"United Kingdom",
"London",
"5 Merchant Square",
"5b_feedback",
"London Office",
"1st Floor",
"Kitchen"
],
"tstamp": 1592401427365,
"updateDate": "2020-06-17T13:43:47.365Z",
"updaterId": "yourname@microshare.io"
},
D. Contact Tracing
{
"meta": {
"currentCount": 1,
"currentPage": 1,
"perPage": 1,
"source": "db",
"totalCount": 1,
"totalPages": 1
},
"objs": [
{
"_id": "5ee136f146e0fb00282cb???",
"checksum": "8E6E2AD84157FA0E152B0AD419FB5290ED54808139E67A98F76116B8C0CC51EAL825",
"createDate": "2020-06-10T19:39:29.798Z",
"creatorId": "yourname@microshare.io",
"data": {
"averageRSSI": -89,
"detectedDevice": "000003BAB???",
"device": {
"id": "AC233F664???"
},
"duration": 3,
"endTime": "2020-06-10T19:37:28.331Z",
"locationBeacon": true,
"meta": {
"device": {},
"iot": {
"device_id": "AC233F664???"
},
"source": {
"device": [
"Wokingham",
"Ground",
"Lounge",
""
],
"global": [],
"iot": {
"device_id": "70-76-FF-00-69-04-??-??",
"fcnt_dwn": 5,
"fcnt_up": 347,
"fport": 95,
"ns_version": "v3.0",
"payload": "a16176818346ac233f6644ab190b4e8b851831437cbf000604358500433406000605348500432f00000806308500430200000805348500430100000804358500430100000301368500430100000403358500430300000605318500440163fa0009063585004401560000080631850043190000050334",
"payload_fmt": 1,
"time": "2020-06-10T19:39:28.331Z",
"type": "uplink"
},
"source": []
}
},
"originatingDevice": "AC233F664???",
"originatingDeviceBattery": 2.894,
"start": 5,
"startTime": "2020-06-10T19:34:28.331Z"
},
"desc": "",
"id": "5ee136f146e0fb00282cb???",
"name": "",
"origin": {
"checksum": "8E6E2AD84157FA0E152B0AD419FB5290ED54808139E67A98F76116B8C0CC51EAL825",
"createDate": "2020-06-10T19:39:29.798Z",
"creatorId": "yourname@microshare.io",
"desc": "Record of Type io.microshare.contact.unpacked.event",
"id": "5ee136f146e0fb00282cb???",
"name": "io.microshare.contact.unpacked.event",
"remoteAddress": "000.00.00.000",
"tokendata": {
"id": "a1c1541d-3a3d-4255-951a-499311c5e???",
"ip": "000.00.00.000"
}
},
"owner": {
"appid": "51C54CDB-D278-4CFD-B8378EF13462E???",
"org": "io.microshare",
"owners": [],
"user": "yourname@microshare.io"
},
"recType": "io.microshare.contact.unpacked.event",
"tags": [
"Wokingham",
"Ground",
"Lounge"
],
"tstamp": 1591817969798,
"updateDate": "2020-06-10T19:39:29.798Z",
"updaterId": "yourname@microshare.io"
}
]
}
{
"event_type":"create",
"id":"5edfb7e246e0fb00297b5???",
"obj":{
"checksum":"E418D6462C167B01655652EA9F0987D42490DBFABBBDD64EFA324A384A3394C3L1496",
"createDate":1591719906298,
"creatorId":"yourname@microshare.io",
"data":{
"averageRSSI":-6,
"detectedDevice":"C96E9E87F???",
"duration":11,
"endTime":"2020-05-07T14:41:00.000Z",
"locationBeacon":false,
"originatingDevice":"EEA0E0E2D???",
"originatingDeviceBattery":"2.658V",
"start":5,
"startTime":"2020-05-07T14:35:00.000Z",
"device":{
"id":"EEA0E0E2D???"
},
"meta":{
"device":{
},
"iot":{
"device_id":"EEA0E0E2D???"
},
"source":{
"device":[
"Location1",
"Location2",
"Location3",
"Location4"
],
"global":[
"GlobalTag1",
"GlobalTag2",
"GlobalTag3",
"GlobalTag4"
],
"iot":{
"device_id":"70-76-FF-00-69-04-??-??",
"fcnt_dwn":1,
"fcnt_up":79,
"fport":85,
"iso_time":"2020-06-09T19:47:39.185Z",
"ns_version":"v3.0",
"payload":"a16162958346a0e6f8a0c537350083460b3c470150923200834170340083410433008342746e3100834104340083410531008341013400834101330083419631008346185318127e423600834610e4d899208b300083460897b3c3ac4a3300834603b21606e77035008346069f0f8d92003200834604124eca6ea426008346034325f968da3300834601c64aac0f57310083460df476b95daa320083452a01caba0d29008341812600",
"payload_fmt":1,
"time":"2020-06-04T19:30:00.185Z",
"type":"uplink"
},
"source":[
]
}
}
},
"desc":"",
"id":"5edfb7e246e0fb00297b5???",
"name":"",
"origin":{
"checksum":"E418D6462C167B01655652EA9F0987D42490DBFABBBDD64EFA324A384A3394C3L1496",
"createDate":"2020-06-09T16:25:06.298Z",
"creatorId":"yourname@microshare.io",
"desc":"Record of Type io.microshare.contact.unpacked.event",
"id":"5edfb7e246e0fb00297b5???",
"name":"io.microshare.contact.unpacked.event",
"remoteAddress":"113.90.8.233",
"tokendata":{
"id":"5d548231-7b91-4040-bff6-ad4a92ee3???",
"ip":"000.00.00.000"
}
},
"owner":{
"appid":"51C54CDB-D278-4CFD-B8378EF13462E???",
"meta":{
},
"org":"io.microshare",
"owners":[
],
"user":"yourname@microshare.io"
},
"recType":"io.microshare.contact.unpacked.event",
"tags":[
"Europe",
"Ireland",
"Leinster",
"Dublin"
],
"tstamp":1591719906298,
"updaterId":"yourname@microshare.io"
},
"obj_type":"objs",
"recType":"io.microshare.contact.unpacked.event",
"source":"ShareService"
}
E. Asset Zoning
See below the code for more detail on the meaning of the different fields.
{
"_id": "5fb54be9a401e8001d80c7fb",
"checksum": "AC23F16DDC3330223DEC3AE9B60DF4FC03BC9CD633A07294BF1BE2B97D9E5BA7L633",
"createDate": "2020-10-17T16:29:29.769Z",
"creatorId": "admin@microshare.io",
"data": {
"device": {
"id": "AC754B6636BC"
},
"event": "confirm",
"external_id": "",
"meta": {
"device": [
"Machine",
"Xray",
"Xray1"
],
"iot": {
"device_id": "AC754B6636BC"
},
"source": {
"device": [
"Main Building",
"First Floor",
"Entrance",
""
],
"global": [
"UK",
"London",
"West Hill",
"Asset Zoning"
],
"iot": {
"device_id": "78-70-EE-00-69-04-02-50",
"fcnt_dwn": 12694,
"fcnt_up": 12841,
"fport": 85,
"ns_version": "v3.0",
"payload": "a1616381831ab76eda4f3600",
"payload_fmt": 1,
"time": "2020-10-17T16:29:29.172Z",
"type": "uplink"
},
"source": []
}
},
"movement": false,
"signal": {
"unit": "rssi",
"value": -93
},
"time": "2020-10-17T16:29:29.172Z"
},
"desc": "",
"id": "5fb54be9a401e8001d80c7fb",
"name": "",
"origin": {
"checksum": "AC23F16DDC3330223DEC3AE9B60DF4FC03BC9CD633A07294BF1BE2B97D9E5BA7L633",
"createDate": "2020-10-17T16:29:29.769Z",
"creatorId": "admin@microshare.io",
"desc": "Record of Type io.microshare.zoning.unpacked.mock.event",
"id": "5fb54be9a401e8001d80c7fb",
"name": "io.microshare.zoning.unpacked.mock.event",
"remoteAddress": "",
"tokendata": {
"id": "",
"ip": ""
}
},
"owner": {
"appid": "51C54CDB-D278-4CFD-B8378EF13462E5FB",
"org": "io.microshare",
"owners": [],
"user": "admin@microshare.io"
},
"recType": "io.microshare.zoning.unpacked.mock.event",
"tags": [
"Machine",
"Xray",
"Xray1"
"UK",
"London",
"West Hill",
"Main Building",
"First Floor",
"Entrance"
],
"tstamp": 1605716969769,
"updateDate": "2020-10-17T16:29:29.769Z",
"updaterId": "admin@microshare.io"
}
- data.event - this has 3 values:
- “new” - the device has entered the range of the wave scanner
- “remove” - the device was previously in range and has left the range of the wave scanner. RSSI will be 0
- “confirm” - the device was previously in range and is still in range of the scanner
- data.meta.device are the details of the detected asset
- data.meta.source.device and .global are the details of the wave scanner that detected the device
- data.movement - ( True – Asset is moving/False – Asset is not moving)
- data.device.id - Tag ID (BLE Tag)
- data.signal - Signal Strength
- data.time - Event Time (Last Seen)
F. Heartbeat Data
Used in contact tracing and asset zoning solutions, a heartbeat record indicates a communication between Microshare and a wearable device to ensure that the device is operating properly. Heartbeat records are used for devices in storage mode and active devices with no previous contact records (which would otherwise not be detailed in the event data in contact tracing solutions).
Parameters:
- id: The identification number of your device in communication.
- deviceBattery: The battery level of your device.
- messageType: This feild will be “contact” for a contact tracing solution and “asset” for a asset zoning solution.
- mode: This field will read “storage” if the device in contact is in storage and inactive. If “nominal”, the device in contact is active but has no previous contact records.
{
"device": {
"id": "ACD340663???"
},
"deviceBattery": 2.673,
"messageType": "contact",
"meta": {
"device": [],
"iot": {
"device_id": "ACD340663???"
},
"source": {
"device": [
"HQ",
"Main Floor",
"Break Room",
""
],
"global": [],
"iot": {
"device_id": "AA-BB-CC-DD-00-??-??-??"
},
"source": {}
}
},
"mode": "nominal",
"time": "2020-10-05T17:19:02.855Z"
}
